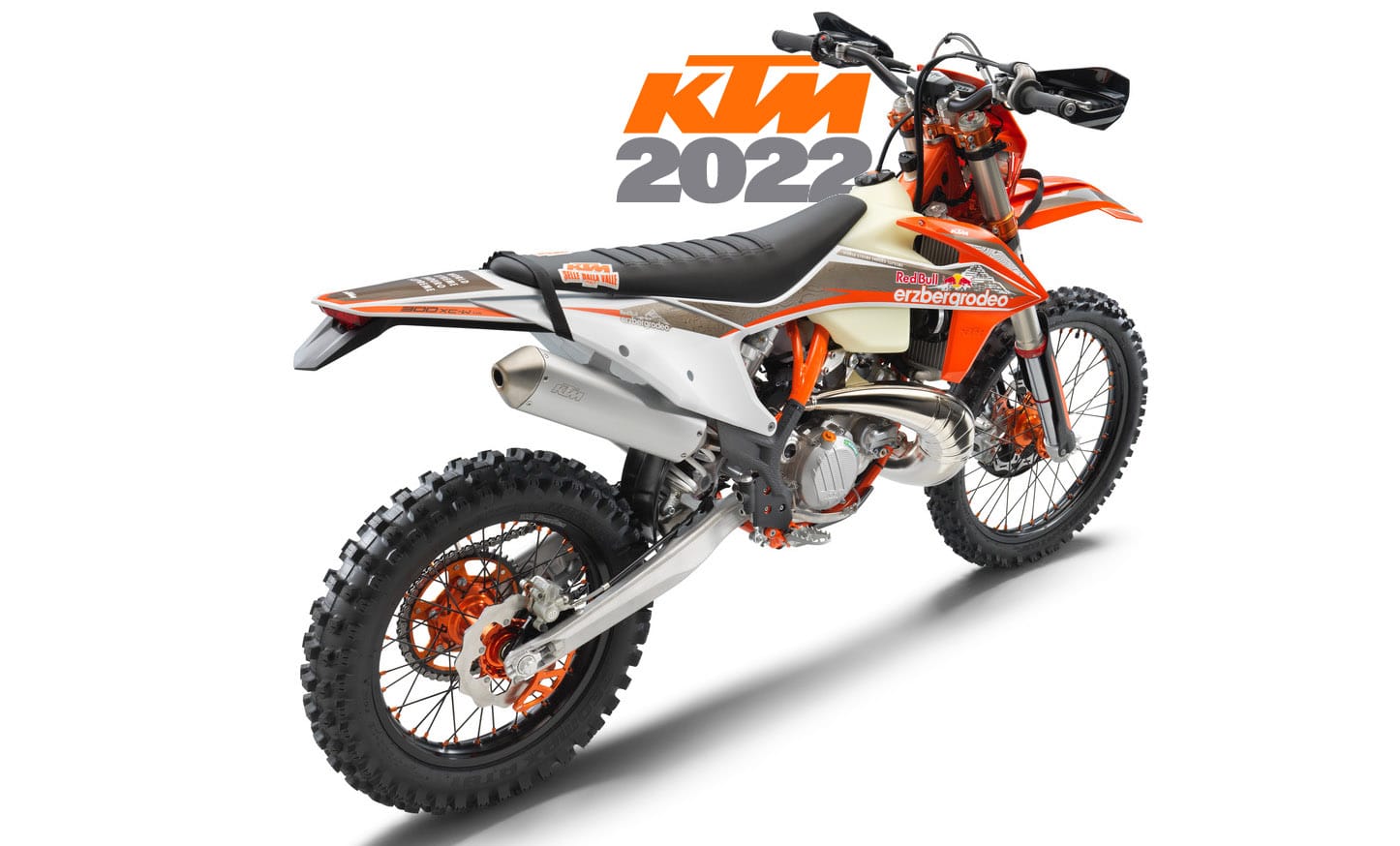

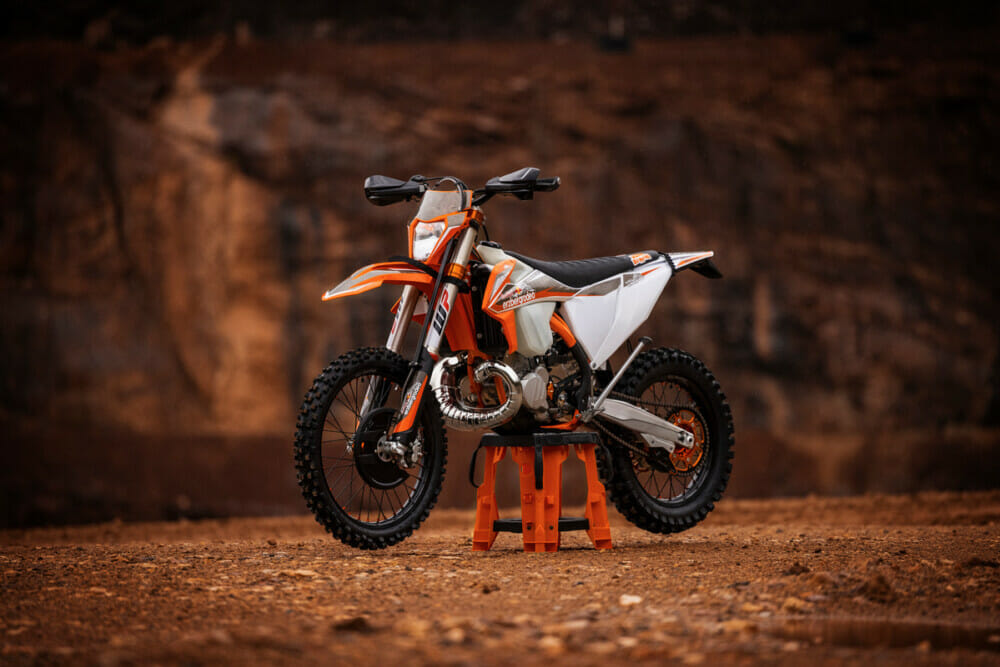

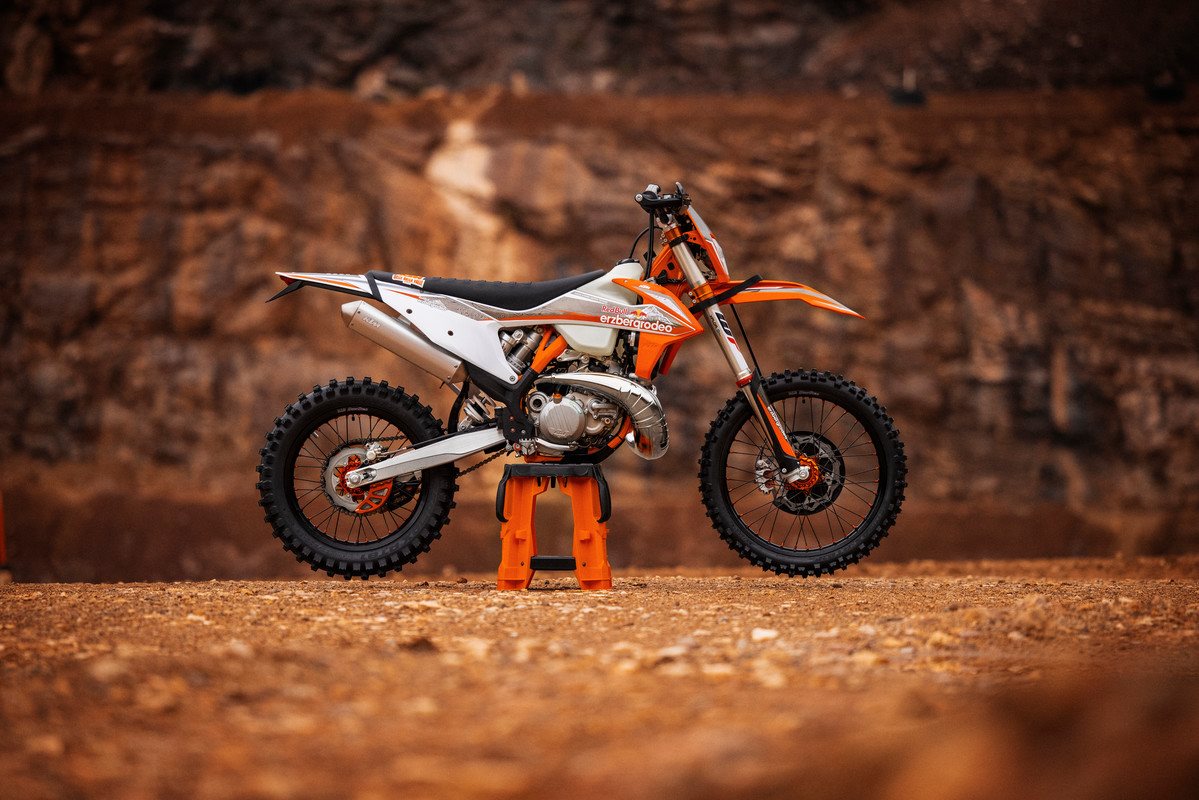

KTM 300 XC-W TPI ERZBERGRODEO 2022
2022Advanced · 7/10
Enduro / Cross Country / Racing / Hard Enduro
293cc
2-stroke
229lb
dry weight
37.8in
Seat height
11.8in
Front travel
6spd
Gearbox
The machine
The KTM 300 XC-W TPI ERZBERGRODEO 2022 is a cross-country bike built around a 293cc fuel-injected 2-stroke single-cylinder engine and a 6-speed gearbox, with electric starting. It weighs 229 lb dry, has a 37.8″ seat height, gets 11.8″ of travel up front and 12.2″ out back and rolls on 90/90-21 M/C 54M M+S TT / 140/80-18 M/C 70M M+S TT tires. It is not street legal and carries 2.4 gal of fuel.
Garage
01 / 03
Tech specs
Engine
- Displacement
- 293cc
- Stroke
- 2-stroke
- Fuel system
- Fuel injection
- Bore × stroke
- 72 × 72 mm
- Cooling
- Liquid
- Configuration
- Single-cylinder
- Oil chamber
- Dual
- Engine oil
- 0.6 L
- Oil type
- 15W-50
- Coolant
- 1.2 L
Clutch
- Type
- Wet multiplate
- Actuation
- Hydraulic
- Assist
- Manual
- Brand
- Brembo
Drivetrain
- Starting
- Electric
- Transmission
- 6-speed
- Chain size
- 520
- Chain links
- 118
- Front sprocket
- 14T
- Rear sprocket
- 50T
Dimensions
- Dry weight
- 229 lb
- Seat height
- 37.8″
- Ground clearance
- 14.6″
- Wheelbase
- 58.4″
- Fuel capacity
- 2.4 gal
Frame & steering
- Frame material
- Chromoly
- Architecture
- Central tube
- Rake
- 26.5°
Suspension
- Front
- WP XPLOR OC
- Front travel
- 11.8″
- Rear
- WP XPLOR PDS
- Rear travel
- 12.2″
Wheels & tires
- Front wheel
- 21″
- Rear wheel
- 18″
- Front tire
- 90/90-21 M/C 54M M+S TT
- Rear tire
- 140/80-18 M/C 70M M+S TT
Brakes
- Front disc
- 260 mm
- Rear disc
- 220 mm
Stock features
- Map switch
- Yes
- Skid plate
- Yes
- Radiator fan
- No
- Street legal
- No
Battery / electrical
- Battery
- Yes
- OEM battery
- HJTZ5S-FP-C
- Chemistry
- Lithium
- Voltage
- 12V
- Capacity
- 2 Ah
