Honda CR250R 2002

Advanced · 9/10

Motocross / Racing

2002 Honda CR250R

249cc

2-stroke

213lb

Dry weight

37.4in

Seat height

12.4in

Front travel

5spd

Gearbox

2002 Honda CR250R overview

The 2002 Honda CR250R is a motocross racer powered by a liquid-cooled, 249cc single-cylinder two-stroke engine with carburetor fuel delivery, case-reed induction and an electronically controlled power valve. All-new for 2002, Honda’s third-generation twin-spar aluminum frame pairs with a redesigned engine, a five-speed transmission and kick starting. Suspension consists of a 47 mm inverted Showa cartridge fork with 12.4 in of travel and a fully adjustable Showa shock with Pro-Link linkage and 12.6 in of rear travel. The bike has a 37.4 in seat height, 13.6 in of ground clearance, a 2 gal fuel tank and a 213 lb dry weight. Honda’s final 250 two-stroke motocrosser, the CR250R remained in production through 2007.

Who it's for

This CR250R is for motocross riders and racers who want a competition-focused two-stroke for closed-course riding. Its 249cc engine, five-speed gearbox and long-travel Showa suspension suit track sessions and racing rather than street commuting. The 37.4 in seat height and kick start are useful considerations when deciding whether its size and starting setup fit your riding needs.

Quick facts

  • The 2002 Honda CR250R has a 249cc carbureted 2-stroke engine, a 5-speed gearbox and kick start.
  • The 2002 CR250R weighs 213 lb dry and has a 37.4 in seat height.
  • The 2002 CR250R runs 80/100-21 front and 110/90-19 rear tires.
  • The 2002 CR250R runs premix at 32:1.
  • The 2002 CR250R lists at $5,899 (US MSRP). It is not street legal in the US.

2002 Honda CR250R specifications

Engine

Displacement
249cc
Stroke
2-stroke
Fuel system
Carburetor
Bore × stroke
66.4 × 72 mm
Compression
8.5:1
Cooling
Liquid
Configuration
Single-cylinder
Oil chamber
Dual
Engine lubrication
Premix (oil in the fuel)
Premix ratio
32:1 (fuel to oil)
2-stroke oil
Pro Honda HP2 2-stroke oil or equivalent
Gearbox oil
0.7 US qt (0.65 L)
Gearbox oil type
10W-40
Coolant
1.1 US qt (1.08 L)

Clutch

Type
Wet multiplate
Actuation
Cable
Assist
None (standard clutch)

Drivetrain

Starting
Kick
Transmission
5-speed
Chain size
520
Chain links
114
Front sprocket
13T

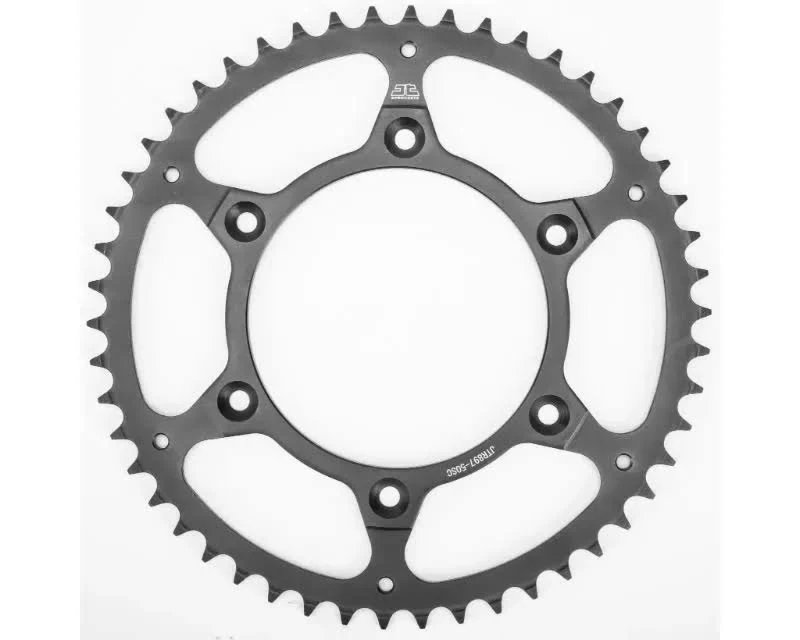

Rear sprocket
48T

Dimensions

Dry weight
213 lb
Seat height
37.4″
Ground clearance
13.6″
Wheelbase
58.7″
Width
32.4″
Height
50″
Length
86.2″
Fuel capacity
2 gal

Price & warranty

Colors
Red

Frame & steering

Frame material
Aluminum
Architecture
Perimeter
Rake
26.7°
Trail
4.2″

Suspension

Front
47 mm inverted Showa cartridge fork; adjustable rebound and compression damping
Front travel
12.4″
Rear
Pro-Link system; fully adjustable Showa single shock
Rear travel
12.6″

Wheels & tires

Front wheel
21″
Rear wheel
19″
Front tire
80/100-21 51M Dunlop K490G
Rear tire
110/90-19 62M Dunlop K695

Brakes

Front disc
240 mm
Rear disc
240 mm

Stock features

Street legal (US)
No

Battery / electrical

Battery
No

2002 Honda CR250R maintenance

From the maker's manuals. Tap a row to see the manual page.

Service intervals

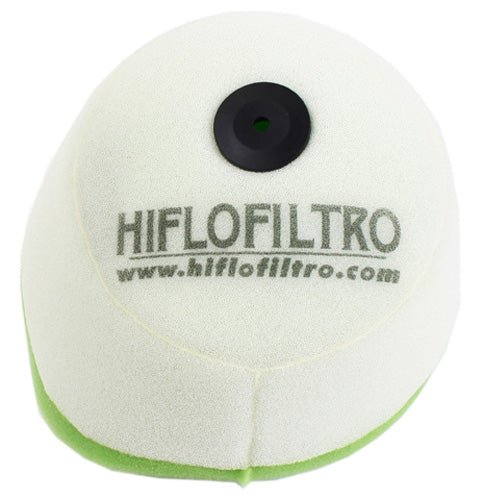

Clean air filter
Every race or about 2.5 hours
Inspect spark plug
Every race or about 2.5 hours
Replace spark plug
Every 3 races or about 7.5 hours
Change gearbox oil
Every 3 races or about 7.5 hours
Replace piston and rings
Every 3 races or about 7.5 hours

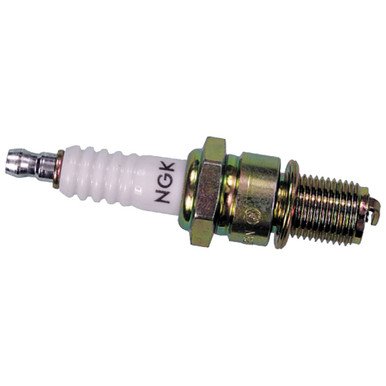

Spark plug

Spark plug
NGK BR8EG
Plug gap
0.020 – 0.024 in (0.5 – 0.6 mm)
Spark plug (alternative)
DENSO W24ESR-V
Spark plug (optional)
NGK BR8EV
Spark plug (optional)
DENSO W24ESR-G

Torque specs

Gearbox oil drain plug
21 ft‑lb (29 N·m, 3.0 kgf·m)
Front axle nut
65 ft‑lb (88 N·m, 9.0 kgf·m)
Front axle pinch bolts
15 ft‑lb (20 N·m, 2.0 kgf·m)
Rear axle nut
94 ft‑lb (127 N·m, 13.0 kgf·m)
Upper triple clamp bolts
16 ft‑lb (22 N·m, 2.2 kgf·m)
Lower triple clamp bolts
15 ft‑lb (20 N·m, 2.0 kgf·m)
Steering stem nut
80 ft‑lb (108 N·m, 11.0 kgf·m)
Handlebar clamp bolts
16 ft‑lb (22 N·m, 2.2 kgf·m)
Front brake caliper mounting bolts
22 ft‑lb (30 N·m, 3.1 kgf·m)
Front brake disc nuts
12 ft‑lb (16 N·m, 1.6 kgf·m)
Rear brake disc nuts
12 ft‑lb (16 N·m, 1.6 kgf·m)
Rear sprocket nuts
24 ft‑lb (32 N·m, 3.3 kgf·m)
Chain adjuster locknut
20 ft‑lb (27 N·m, 2.8 kgf·m)
Shock absorber top mount
32 ft‑lb (44 N·m, 4.5 kgf·m)

Parts that fit the 2002 Honda CR250R

Exact parts for this bike. Tap one to see every store selling it, cheapest first.

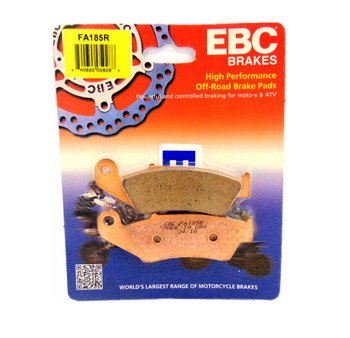

Maintenance

Oil, filters, spark plug, battery, brakes and drive parts you replace as you ride.

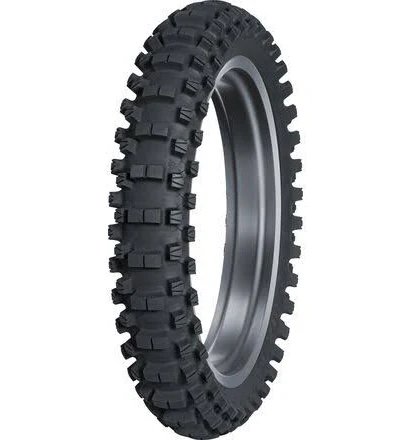

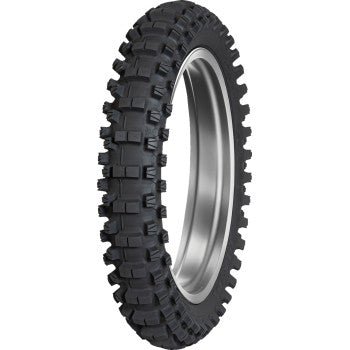

Tires

Stock sizes, from the maker's manual.

Controls

Grips, and the throttle part each bike needs to fit them.

Prices include shipping where the store lists it and were checked Oct 31, 2026. A store that doesn't list its shipping is placed as if it charged what the other stores do. Prices change, so confirm at the store before you buy.

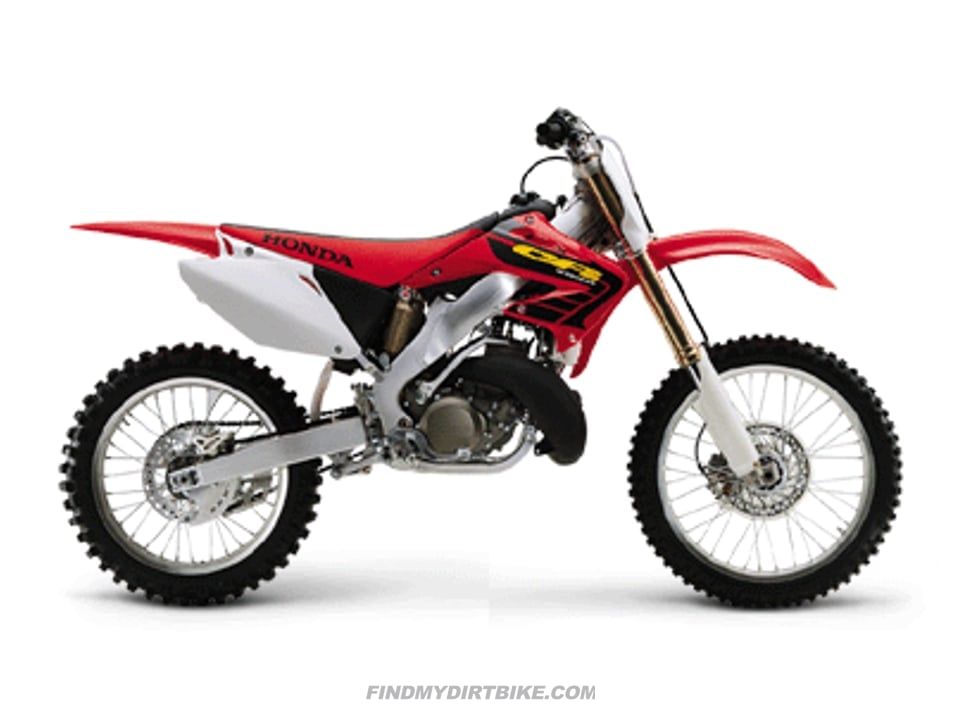

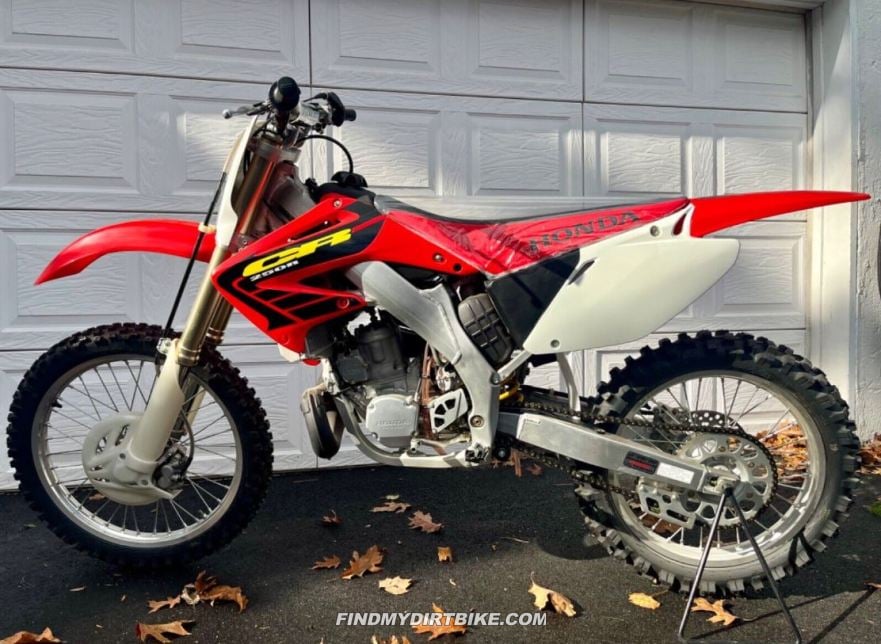

2002 Honda CR250R photos

Honda CR250R FAQ

  1. What engine does the 2002 Honda CR250R have?

    It has a liquid-cooled, 249cc single-cylinder two-stroke engine with a carburetor, case-reed induction and an electronically controlled power valve.

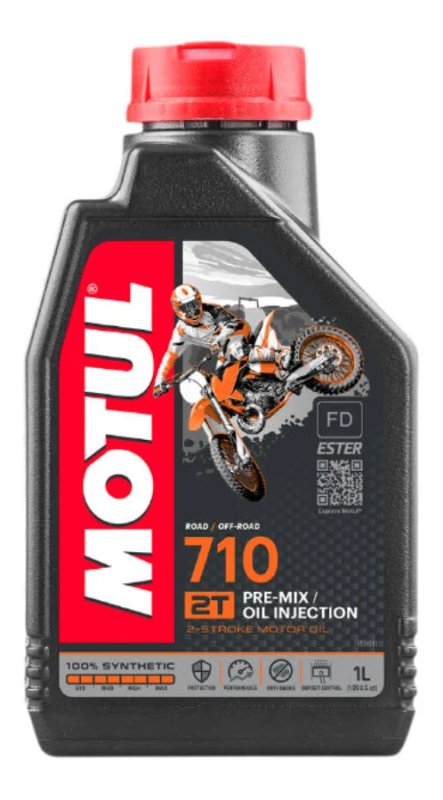

  2. What premix ratio and two-stroke oil does the 2002 Honda CR250R use?

    Use a 32:1 fuel-to-oil premix with Pro Honda HP2 two-stroke oil or an equivalent.

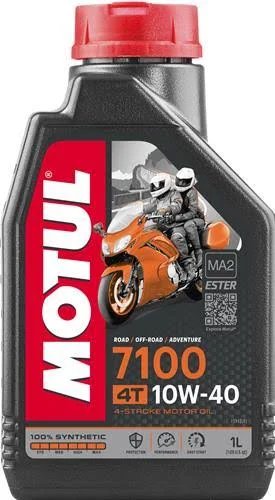

  3. What gearbox oil does the 2002 Honda CR250R use?

    It uses SAE 10W-40 transmission oil meeting JASO MA, such as Pro Honda HP Trans oil, GN4 or HP4 without molybdenum additives.

  4. What is the seat height of the 2002 Honda CR250R?

    The seat height is 37.4 in.

  5. How much does the 2002 Honda CR250R weigh?

    Its dry weight is 213 lb.

  6. How much suspension travel does the 2002 Honda CR250R have?

    It has 12.4 in of front travel and 12.6 in of rear travel.

  7. How much fuel does the 2002 Honda CR250R hold?

    The fuel tank holds 2 gal.

  8. Is the 2002 Honda CR250R street legal in the US?

    No, it is not street legal in the US.

  9. What was the MSRP of the 2002 Honda CR250R?

    The US MSRP was $5,899.

  10. What size tires does the 2002 Honda CR250R use?

    80/100-21 front and 110/90-19 rear.

  11. What spark plug does the 2002 Honda CR250R take?

    NGK BR8EG, gapped 0.020 – 0.024 in (0.5 – 0.6 mm).

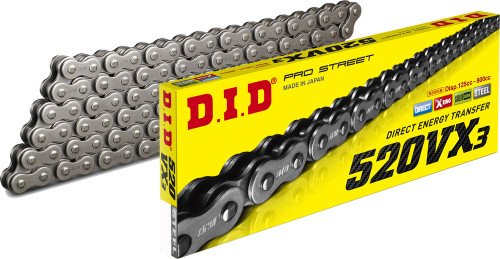

  12. What chain and sprockets does the 2002 Honda CR250R use?

    A 520 chain with 114 links on a 13-tooth front and 48-tooth rear sprocket.
