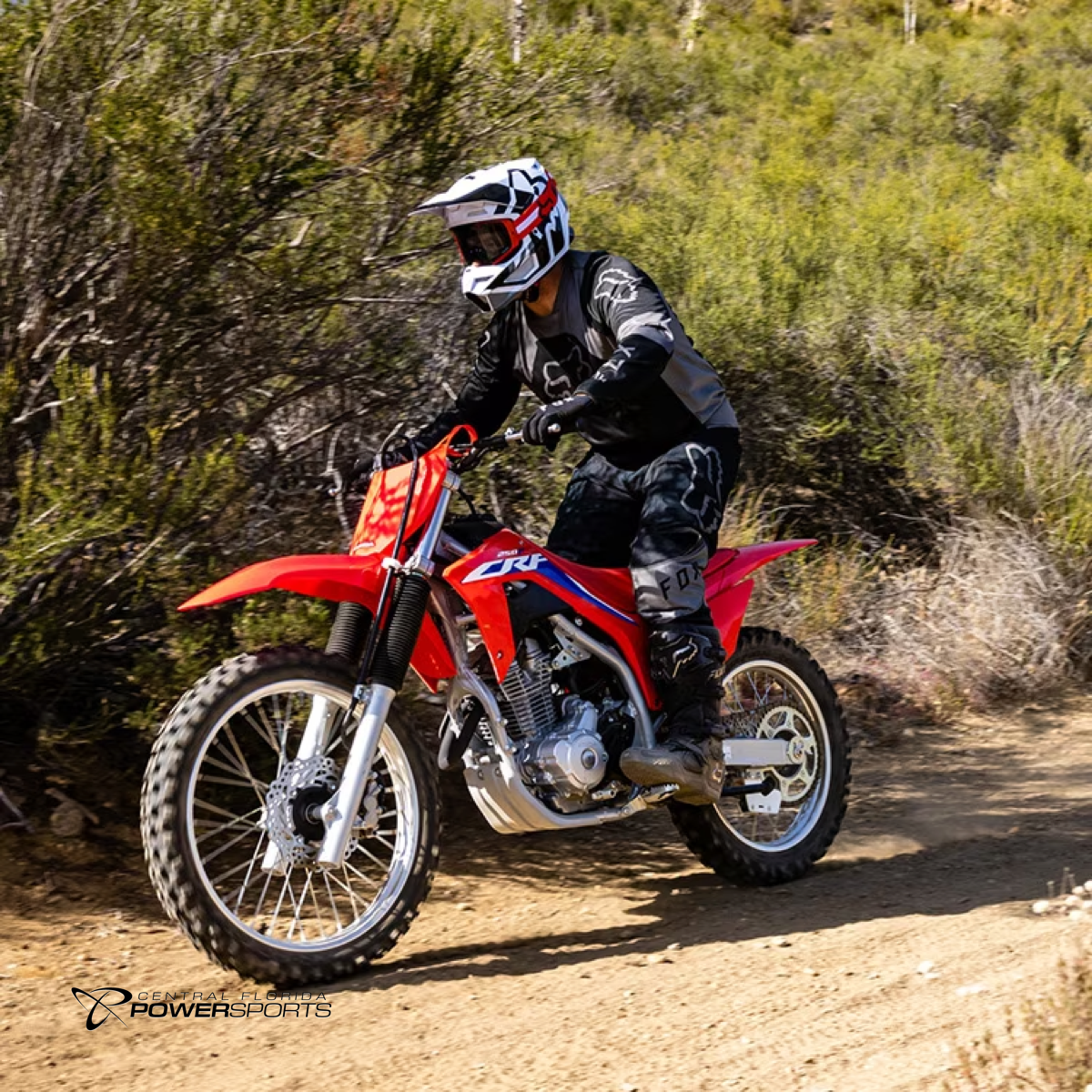

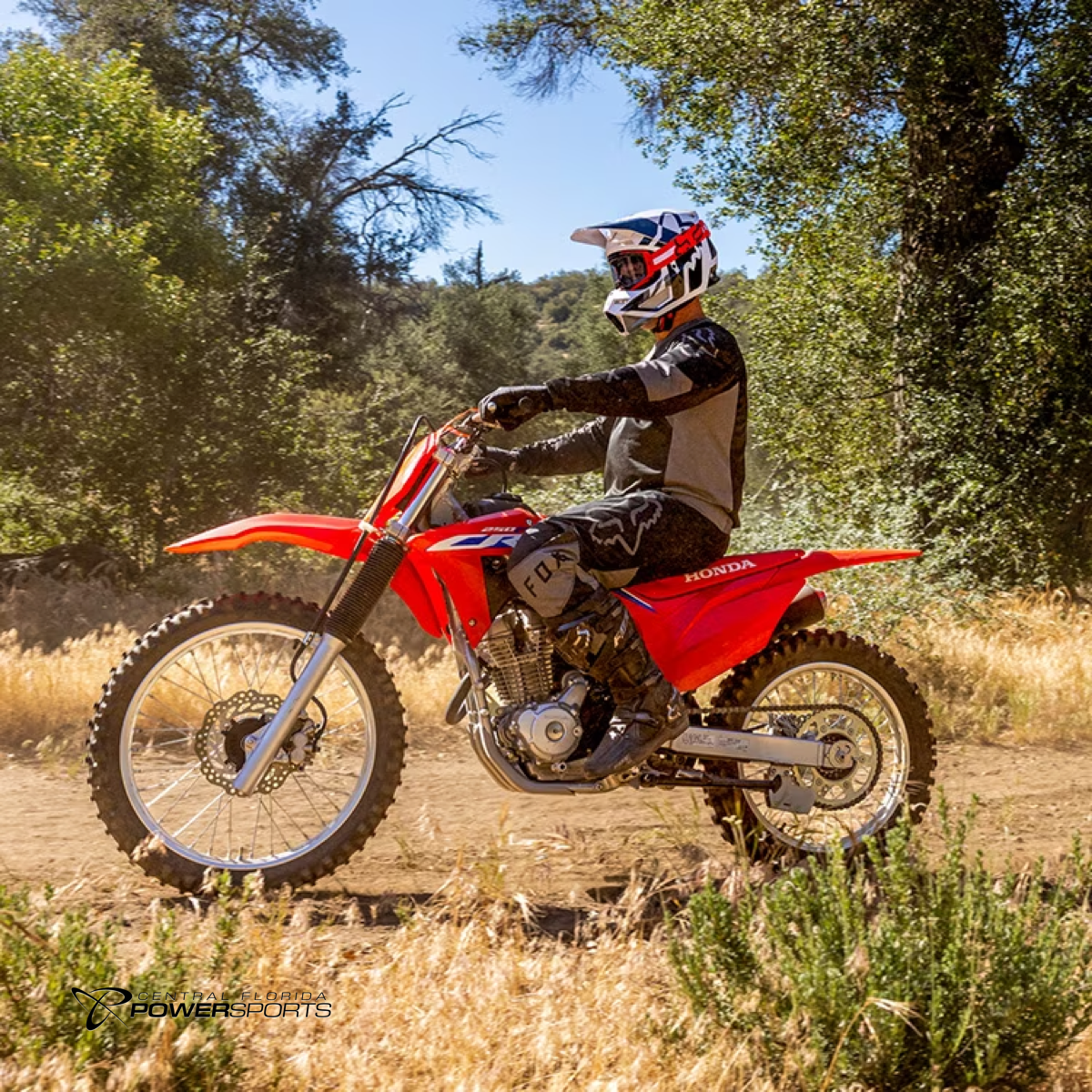

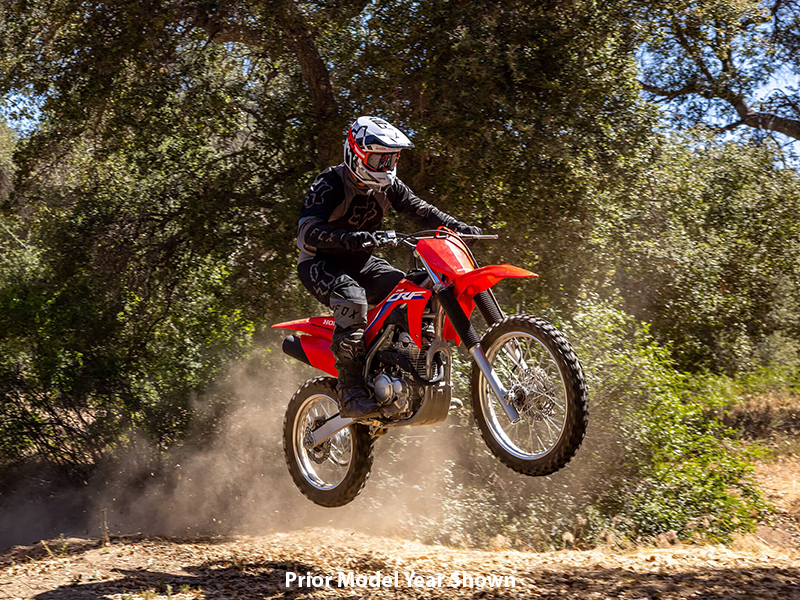

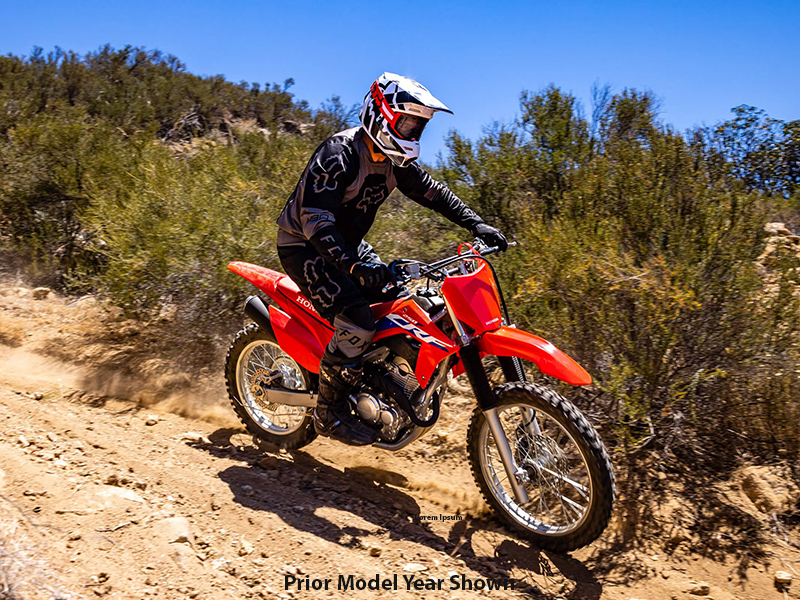

Honda CRF250F 2024
2024Intermediate · 4/10
Motocross / Enduro / Trail
249cc
4-stroke
8.5in
Front travel
5spd
Gearbox
The machine
The Honda CRF250F 2024 is a trail bike built around a 249cc fuel-injected 4-stroke single-cylinder engine and a 5-speed gearbox, with electric starting. It gets 8.5″ of travel up front and 9.1″ out back and rolls on 80/100-21 51R NHS / 100/100-18 59R NHS tires. It is not street legal and carries 1.59 gal of fuel.
Garage
01 / 04
Tech specs
Engine
- Displacement
- 249cc
- Stroke
- 4-stroke
- Fuel system
- Fuel injection
- Bore × stroke
- 71 × 63 mm
- Compression
- 9.6 : 1
- Torque
- 16.8 ft-lb
- Configuration
- Single-cylinder
- Oil chamber
- Single
- Engine oil
- 1.4 L
- Oil type
- 10W-30
Clutch
- Type
- Wet multiplate
- Actuation
- Cable
- Assist
- Manual
Drivetrain
- Starting
- Electric
- Transmission
- 5-speed
- Chain size
- 520
Dimensions
- Wheelbase
- 55.9″
- Width
- 31.5″
- Height
- 46.7″
- Fuel capacity
- 1.59 gal
Frame & steering
- Rake
- 26.1°
- Trail
- 4″
Suspension
- Front
- Suspension, front 8.5 in (216 mm) axle travel
- Front travel
- 8.5″
- Rear
- Suspension, rear 9.1 in (230 mm) axle travel
- Rear travel
- 9.1″
Wheels & tires
- Front wheel
- 21″
- Rear wheel
- 18″
- Front tire
- 80/100-21 51R NHS
- Rear tire
- 100/100-18 59R NHS
Stock features
- Street legal
- No
Battery / electrical
- Battery
- Yes
- OEM battery
- YTZ7S
- Chemistry
- Lead acid
- Voltage
- 12V
- Capacity
- 6 Ah
